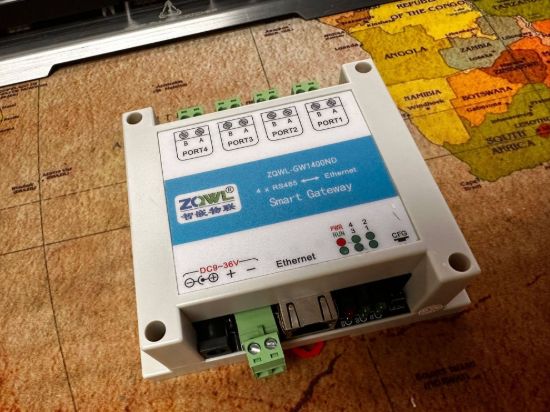

✌️ZQWL GW-1400ND 4 Way RS485 to Ethernet Smart Gateway✌️

Manufacturer: ZQWL 智嵌物聯
SKU: 2H-ZQWL-GW1400ND
智嵌物聯 ZQWL-GW1400ND 導軌式 4路 RS485 轉以太網串口伺服器 (工業級 Modbus/MQTT 網關) ** 只用過一次做測試, 新的一樣 ** 產品簡介 工業自動化與物聯網數據採集的超強核心!智嵌物聯 ZQWL-GW1400ND 是一款專為商用與工業環境設計的 4 路 RS485 轉以太網雙向數據轉換器。採用高效能 ARM9 處理器核心,配備標準 35mm 導軌式外殼。它能將 4 路獨立的 RS485 串口設備完美接入 IP 網路,支援 MQTT、Modbus TCP、HTTP、JSON等多種主流通訊協議,並具備強大的 Modbus 主動輪詢能力,是您建置智慧工廠、節能環境監控或雲端機房的最佳網關終端。
Old price: HK$200.00
HK$100.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shares:
智嵌物聯 ZQWL-GW1400ND 導軌式 4路 RS485 轉以太網串口伺服器 (工業級 Modbus/MQTT 網關)
產品簡介
工業自動化與物聯網數據採集的超強核心!智嵌物聯 ZQWL-GW1400ND 是一款專為商用與工業環境設計的 4 路 RS485 轉以太網雙向數據轉換器。採用高效能 ARM9 處理器核心,配備標準 35mm 導軌式外殼。它能將 4 路獨立的 RS485 串口設備完美接入 IP 網路,支援 MQTT、Modbus TCP、HTTP、JSON等多種主流通訊協議,並具備強大的 Modbus 主動輪詢能力,是您建置智慧工廠、節能環境監控或雲端機房的最佳網關終端。

⚙️ 核心通訊與協議支援(隨插即用,超強相容性)
本設備為工業級網路轉換網關,具備優異的工業協議轉換能力,【完美支援以下協議與硬體環境】
  • 標準網路協定:MQTT、HTTP、TCP Client/Server、UDP Client/Server、Web Socket
  • 工業核心協議:Modbus RTU / ASCII 轉 Modbus TCP、JSON 格式互轉
  • 智慧數據上報:支援 Modbus 主動輪詢、定時上傳、比較上傳(數據變動才上報),大幅減輕雲端伺服器的運算與頻寬壓力。
  • 完美對接雲端:可直連阿里雲、騰訊雲、百度雲等標準 MQTT 雲端物聯網平台。

產品核心賣點(Highlights)
  • 工業級四核心獨立通道:內建 4 路獨立的 RS485 串口(非共用),可同時連接不同的串口終端設備,互不干擾。
  • 高效能 ARM9 架構核心:搭載 32 位的 ARM9 處理器,資料雙向轉換速度極快,封包無延遲,確保 24 小時不間斷的資料傳輸穩定性。
  • 寬電壓與抗干擾防護:支援 DC 9V 至 36V 寬電壓輸入,配備 5.08mm 端子排與標準 DC 插孔雙供電介面,具備抗浪湧、防靜電的工業級防護。
  • 無縫適應極端環境:通過嚴苛測試,可在 -40°C 至 85°C 的超寬工作溫度環境下穩定運作,適應各類惡劣的戶外配電箱或高溫機房。
  • 標準工業導軌式安裝:外殼自帶標準 35mm 工業導軌卡槽,裝卸方便,完美融入標準配電櫃與控制箱佈線需求。
  • 動態網頁遠端維護:內建嵌入式 Web 配置伺服器,網管技術人員只需透過瀏覽器即可進行參數設定、IP 修改與串口串接除錯。

詳細功能說明
專為物聯網量身打造的 MQTT / JSON 技術
傳統的工業 RS485 設備只能傳輸十六進制的 Modbus 碼,而 ZQWL-GW1400ND 內建硬體層級的協議解析技術,能直接在網關端將 Modbus 數據包封裝成網際網路通用的 JSON 格式,並透過 MQTT 協議直接推送到您的雲端系統。軟體工程師無需編寫複雜的底層驅動,即可輕鬆完成數據可視化。
智慧型主動輪詢與變動上報
設備不再只是被動地等待透傳。GW1400ND 可以代替 PLC 或伺服器,自行在底層對 4 路 RS485 設備進行定時主動輪詢採集。更可設定「比較上傳」模式,只有當現場感測器的溫度、電壓數值發生變化時才發送網路封包,完美優化頻寬。
貼心的虛擬串口連線支援
提供專用的虛擬串口軟體(VCOM),可將遠端的網絡 IP 映射為本地電腦的 COM 埠(如 COM3、COM4)。原本只能在工廠現場用電腦插線調校的舊款上位機軟體,立刻升級為跨地區的遠端虛擬連線控管。

產品規格表
  • 品牌:ZQWL(智嵌物聯)
  • 型號:ZQWL-GW1400ND
  • 串口數量:4 路 RS485 介面
  • 網路介面:1 埠 10/100M 自適應快速乙太網口 (RJ-45)
  • 核心晶片:32-Bit ARM9 高速工業級處理器
  • 串口波特率:支援 600 bps ~ 115200 bps 等多種標準速率
  • 工作電壓:DC 9V ~ 36V 寬電壓輸入
  • 電源接口:5.08mm 工業端子排 / 5.5x2.1mm DC 圓孔
  • 安裝方式:標準 35mm DIN 導軌式安裝
  • 工作溫度:-40°C ~ 85°C (工業級耐溫)
  • 工作濕度:5% ~ 95% RH (無凝露)
  • 硬體外觀尺寸:約 122 mm x 72 mm x 34 mm
